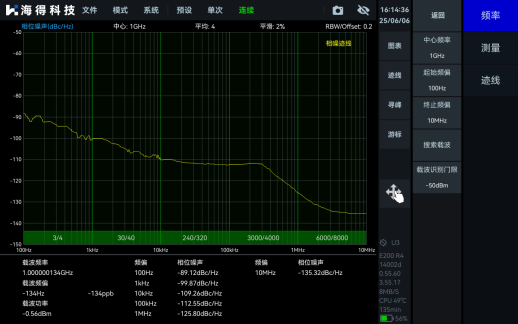

| Frequency range | PXE-90R | PXE-200R |
| 9 kHz-9.5 GHz | 9 kHz-20 GHz | |
| Reference clock | Interior or outside | |
| Frequency accuracy | TCXO (standard) | <1ppm, manual correction is supported |
| OCXO (Option 01) | <1ppm, manual correction is supported | |
| Aging rate and temperature drift | TCXO (standard) | < 1ppm/year, <1ppm |
| OCXO (Option 01) | < 1ppm/year, < 0.15ppm |
| PXE-90R | PXE-200R | |||
| Carrier frequency | 1 GHz | 9.5 GHz | 1 GHz | 20 GHz |
| 1 kHz | -95.2 | -91.5 | -91.2 | -80.6 |
| 10 kHz | -101.6 | -98.5 | -99.7 | -90.6 |
| 100 kHz | -100.6 | -99.7 | -101.1 | -96.2 |
| 1 MHz | -120.9 | -116.2 | -121.6 | -111.5 |
| PXE-90R | PXE-200R | |||
| Reference Level (R.L.) | 0 dBm | -50 dBm | 0 dBm | -50 dBm |
| 9 kHz-1 GHz | -83 | -120 | -90 | -120 |
| 1 GHz-3 GHz | -83 | -120 | -80 | -120 |
| 3GHz-9.5/20 GHz | -90 | -130 | -90 | -120 |
| Image rejection | PXE-90R | PXE-200R |
| 9 kHz-3 GHz | >90 dBc (typical) | >90 dBc (typical) |
| 3 GHz-9.5 GHz | > 90 dBc (typical), spurious rejection = enhanced | >90 dBc (typical) |
| >60 dBc (typical), spurious suppression = off | ||
| 9.5 GHz-20 GHz | - | > 90 dBc (typical), spurious rejection = enhanced |
| >60 dBc (typical), spurious suppression = off | ||
| Midrange rejection | > 90 dBc (typical), spurious rejection = enhanced | |
| >80 dBc (typical), spurious suppression = off | ||
| Local oscillator correlation spurs | <-65 dBc Off-center frequency±(N/M)×100 MHz,N,M = 1,2,3,4,5... |
|

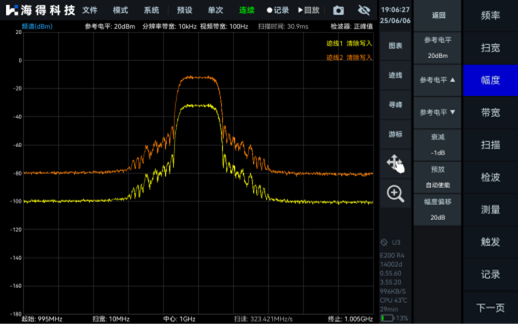

| PXE-90R | PXE-200R | |||
| Carrier frequency | 1 GHz | 9.5 GHz | 1 GHz | 20 GHz |
| R.L. = 20 dBm | 46.1 / 83.2 | 40.5 / 92.8 | 45.5 / 82.6 | 35.3 / 93.6 |
| R.L. = 0 dBm | 26.7 / 85.0 | 19.2 / 90.3 | 25.5 / 81.1 | 21.0 / 89.0 |
| R.L. = -20 dBm | 10.5 / 82.2 | 2.0 / 49.3 | 7.9 / 81.5 | -4.5 / 55.3 |
| Maximum Damaged Input Power (CW) | 23 dBm | 90 MHz-9.5/20 GHz with preplay off |
| 10 dBm | 9 kHz-90 MHz or pre-amplified on | |
| Maximum DC voltage | ±10 VDC | |
| Display range | DANL-23 dBm | |
| Level accuracy | 9 kHz-9.5 GHz | ±2.0 dB |
| 9.5 GHz-20 GHz | ±3.0 dB | |
| Flatness within the mid-band | ±2.0 dB | |
| Reference level | -50 dBm-23 dBm | |
| RF preamplifiers | Can be set to turn on automatically or force off | |
| Enter the port VSWR 90 MHz to maximum frequency |
|
|
| PXE-90R | PXE-200R | |||
| Reference level | -20 dBm | -50 dBm | -20 dBm | -50 dBm |
| 9 kHz | -136.9 | -142.4 | -141.2 | -152.3 |
| 100 kHz to 90 MHz | -146.3 | -150.9 | -152.2 | -160.2 |
| 90 MHz – 3.0 GHz | -145.7 | -165.1 | -147.2 | -165.3 |
| 3.0 GHz – 9.5 GHz | -148.9 | -157.4 | -139.1 | -157.1 |
| 9.5 GHz – 20 GHz | -138.2 | -159.5 |
| detector | Positive Peak, Negative Peak, Sampling, Average, RMS and Maximum Power |
| Resolution Bandwidth (RBW) | 1 Hz-10 MHz |
| Video Bandwidth (VBW) | 1 Hz-10 MHz |

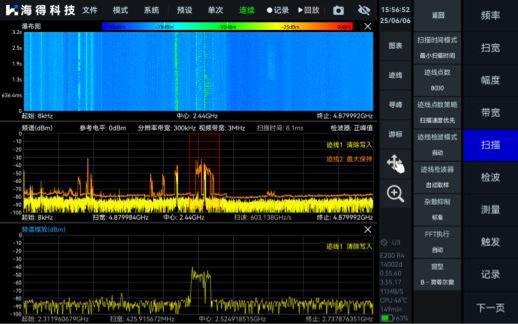

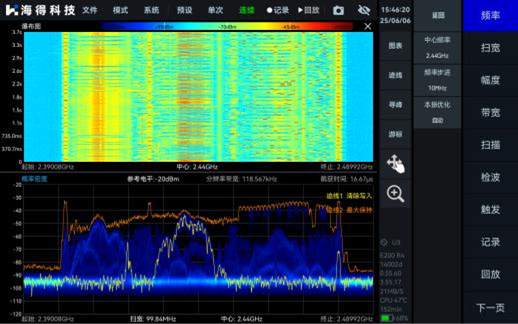

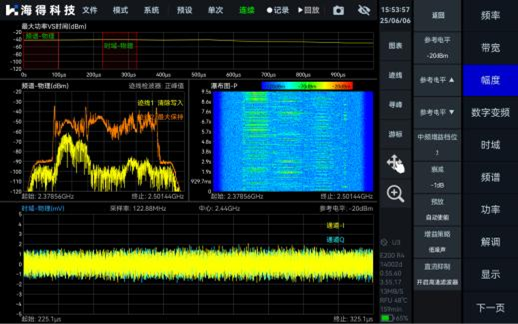

| Data charts | SAStudio4 software provides regular spectrograms, waterfall plots, and historical traces |

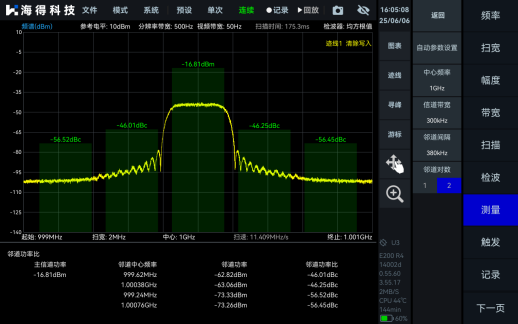

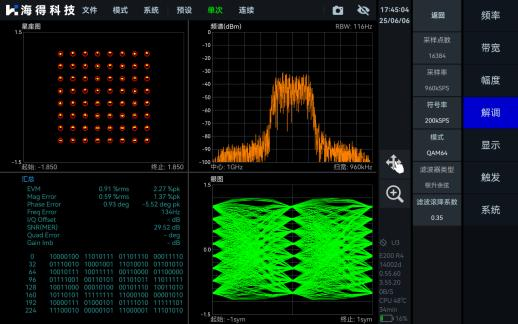

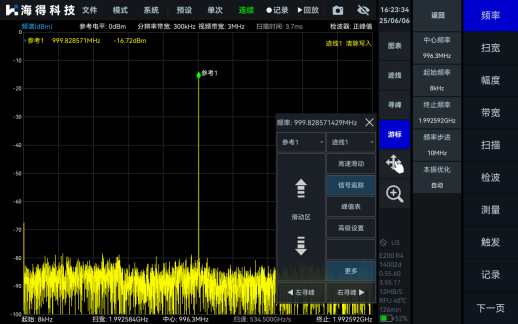

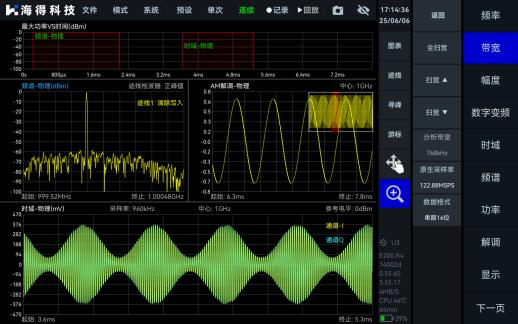

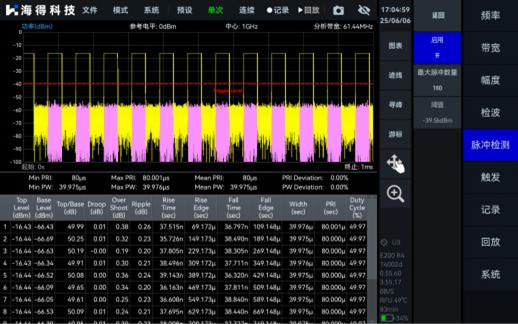

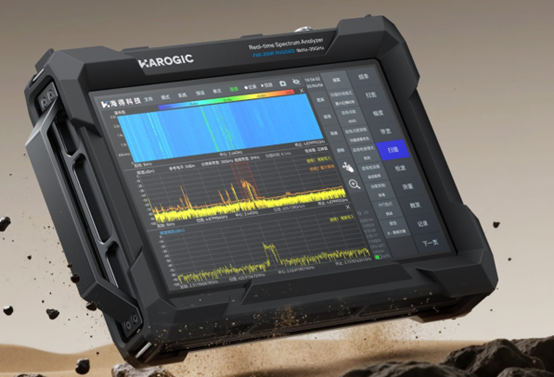

| Measurement function | Channel power, occupied bandwidth, XdB bandwidth, adjacent channel power ratio, IM3, etc |
| Scanning speed | PXE-90R | PXE-200R |
| RBW ≥ 1 MHz FPGA Spurious suppression = off |
Approx. 830 GHz/s | Approx. 890 GHz/s |
| RBW = 250 kHz FPGA Spurious Suppression = Standard |
Approx. 570 GHz/s | Approx. 590 GHz/s |
| RBW = 30 kHz FPGA Spurious suppression = off |
Approx. 150 GHz/s | Approx. 150 GHz/s |
| RBW = 1 kHz CPU Spurious suppression = off |
Approx. 2.8 GHz/s | Approx. 2.7 GHz/s |
| Burst logging bandwidth | Maximum: 100 MHz The built-in memory depth is 128Mbytes |
| Continuously record bandwidth | Maximum: 12.5 MHz Limited by USB bus bandwidth and hard drive read speed, storage depth depends only on hard drive capacity |
| IQ sampling rate | Up to 125MSPS Support decimation multiples: 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096 |
| Outside the trigger response | The maximum frequency response is 500 times/sec |
| Minimum temporal resolution | 8 ns |
| Maximum analysis bandwidth | 100 MHz |
| detector | Positive Peak, Negative Peak, Sampling, Average, RMS and Maximum Power |
| FFT analysis | The FPGA implements an FFT analysis engine, supports frame rate compression, and trace detection. There is strictly no gaps and no overlap between FFT frames FFT refresh rate = 10^9 ns / (N × D × 8 ns), POI = N × D × 8 ns N is FFT points (2048,1024,512,256,128,64,32) D is the extraction multiple (1, 2, 4, 8, etc.) Typical FFT Refresh Rate POI N = 2048, D = 1 61,035 times/sec 16.384 us N = 32, D = 1 3,906,250 times/sec 0.256 us |
| Maximum analysis bandwidth | 100 MHz |
| Window function | B-Nuttall，Flat-top，LowSideLobe |
| Resolution Bandwidth (RBW) | 14.73 MHz-3.59 kHz(Flat-top window) 7.81 MHz-1.90 kHz（B-Nuttall window） There are 13 positions for each window type |
| Amplitude resolution | 0.75 dB |
| Waterproof and dustproof | IEC 60529 IP68 rating, MIL-STD-810H-512.6 and GJB150.14A-2009 certified |
| Drop resistant | MIL-STD-810H-516.8 和 GJB150.18A-2009 authentication |
| Vibration-resistant | MIL-STD-810H-514.8 和 GJB150.16A-2009 authentication |
| power supply | USB PD (65W) |
| USB interface | USB3.0 Type-C*1，USB2.0 Type-C*1，USB2.0 Type-A*1 |
| Audio interface | Micro HDMI*1 (with extended display), 3.5 mm headphone jack*1 |
| RF input | N(F) with an input impedance of 50 Ω |
| External reference clock input | MMCX(F) with an amplitude of ≥ 1.5Vpp and an input impedance of 330 Ω |
| Refer to the clock input | Integrated in MUXIO, 3.3V CMOS, programmable on or off |
| External trigger input | MMCX(F), 3.3V CMOS, input impedance is high impedance |
| Trigger input | MMCX（F），3.3V CMOS |
| External antenna input | MMCX(F) with an amplitude of ≥ 1.5Vpp and an input impedance of 330 Ω |
| Analog IF input | MMCX(F) with a maximum output power of -25 dBm and an output impedance of 50 Ω Support ,307.2MHz+/-50MHz |
| display | IPS LCD 1280x800, 10.1 inch multi-touch screen |
| Running memory/SSD storage | 8 GB/64 GB |
| power consumption | 35~45 W |
| Typical working hours | About 4 hours, support external power bank charging |
| Dimensions (L*W*H) and weight | Approx. 285 mm× 208 mm× 58 mm and approx. 2.5 kg |
| GNSS synchronization | Built-in GNSS (external antennas only) ±100 ns |
| Operating Temperature (Environmental) | T0 temperature rating (standard) 0-50 oC |
| T1 temperature rating (Option 40) -20-65 oC | |
| Storage Temperature (Environmental) | T0 temperature rating (standard) -20-70 oC |
| T1 temperature rating (option 40) -40-85 oC | |
| Packaging accessories | Installed protection of the main unit*1, power adapter*1, power cord*1, lanyard*1 |
