958-AI Acoustic Imager

Name: 958-AI Acoustic Imager
Brand: Orihard
SKU: 958
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 958

The hand-held integrated equipment independently developed by iFLYTEK uses high-precision microphone array

INQUIRY PDF Format

Description

Product Introduction

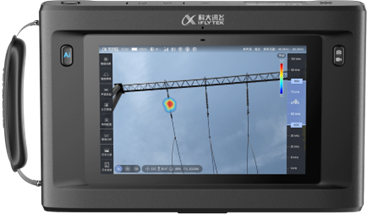

The hand-held integrated equipment independently developed by iFLYTEK uses high-precision microphone array and ultrasonic sound source positioning technology to display the distribution status of sound sources in space in real time through the imaging method of superposition of acoustic image and visible light image, and quickly determine the partial discharge point, gas leakage point, and equipment abnormal noise location, so as to improve the inspection efficiency and maintenance speed. In the case of partial discharge and gas leakage faults, it can also be used to determine the type and evaluate the severity of the fault, so as to provide a basis for the troubleshooting strategy.

Features:

2.1 Fast:
Quickly scan the target area, and lock the location of partial discharge, gas leakage, and abnormal noise in one second; The operation is simple and can be used without training;
2.2 Security:
Partial discharge and gas leakage environment are complex, and the equipment supports detection beyond 40m to ensure the safety of personnel and does not affect the normal operation of the equipment;
2.3 Precision:
Eliminate low-frequency invalid noise interference, accurately capture subtle partial discharge and gas leakage signals, and the positioning deviation is <1°;
2.4 Ultra-high bandwidth:
Integrated high-sensitivity ultrasonic acquisition sensor, supporting up to 128KHz ultrasonic signal detection;
2.5 Smart Calibration:
A variety of air sensors are added, which can calibrate the transmission characteristics of sound waves in complex environments, making sound source localization and analysis more accurate.
2.6 Multi-mode perception:
It has added the ranging function, infrared thermal image (optional) function, and the dual verification of thermal image and sound image, and can meet the quantitative evaluation in some scenarios;
2.7 Intelligent Voice:
Added voice memo and voice transcription functions, after taking a photo, the supplementary information can be saved through voice memo, or directly transcribed by voice to form text, making human-computer interaction more convenient;
2.8 Generate Reports:
The device can generate reports with one click, providing intelligent evaluation and diagnostic results, including PD type, PD severity, gas leakage assessment and corresponding recommended schemes.
2.9 Explosion-proof Certification:
Ex an IIB T4 Gb, It can meet the inspection scenarios of some explosion-proof areas.

Application scenarios

Partial discharge scenarios: including transmission lines, transformers, wall bushings, reactors, etc.
Gas leakage scenarios: including positive or negative pressure gas leakage in chemical pipelines;
Equipment abnormal noise scenarios: including abnormal noise of parts in the production process of automobile manufacturing and machinery manufacturing industry

Technical Specifications:

parameter
Sensing configuration	132 array of high-precision silicon microphones
Sample rate	256KHz
Dynamic range, lower limit	30dB
Dynamic range, upper limit	120dB
bandwidth	1~128KHz
distance	0.3-130m
Imaging parameters
display screen	8 inches, 1280*800
touch	Capacitance 5 points
Video image resolution	720p
Field of view	62*49
Video frame rate	25fps
Panning frame rate	30fps
Digital zoom	2x, 4x
Hardware parameters
Infrared temperature measurement	Support infrared thermal imaging (optional infrared module required)
Ranging	Infrared laser ranging
Multimodal perception	Temperature, humidity and air pressure sensing
Data transmission	Wifi 2.4/5.8GHz;USB3.0; Bluetooth;
Location features	GPS positioning is supported
Data export	TF export, Bluetooth, USB export
Power supply/replaceable design	12.6 V，3.35 Ah
Operating temperature	-10~50℃
Operating humidity	0~90%
weight	<1.8Kg
size	280mm×177mm×50mm
IP rating	IP54
Explosion-proof certification	Ex an IIB T4 Gb
Software parameters
Failure analysis	Support partial discharge type and partial discharge severity analysis (gas leakage version supports gas leakage assessment)
Self-test	Support device self-test

Report generation	The inspection report is directly generated on the device
Event image annotation	Text annotation, speech fragment annotation, and speech transcription annotation are supported
The length of the video	Any length of time
Dynamic range adjustment	In the tank
Threshold adjustment	have
Sound source mode	Single-source mode and multi-source mode are supported
Smart scenes	Intelligent scene switching is supported

This product contains the following list: 1 main unit, 1 power adapter, 2 rechargeable batteries, 1 double-seat charging case, 1 data cable;
