956-AI Ultrasonic Flaw Detector

Name: 956-AI Ultrasonic Flaw Detector
Brand: Orihard
SKU: 956
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 956

INQUIRY PDF Format

Description

956-AI Ultrasonic Flaw Detector

Product Overview

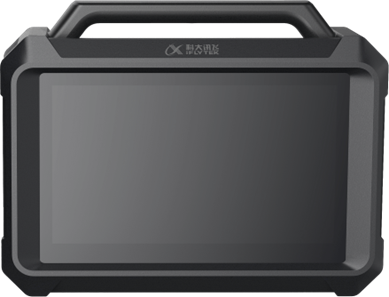

The AI ultrasonic flaw detector developed by iFLYTEK uses a microphone array and a camera combined with acoustic imaging technology to quickly scan the target area and generate a heat map of the partial discharge acoustic wave distribution, visually displaying the location of defects. The equipment achieves efficient detection through AI technology, which is suitable for equipment safety detection in electric power, petrochemical and other fields, can effectively identify hidden dangers such as partial discharge, and improve the intelligent level of industrial detection

Product features

High performance and real-time fast detection
With powerful ultrasonic phased array technology performance and operating processing speed to ensure real-time rapid inspection, equipped with professional system data acquisition and analysis software, it provides flexible and scalable solutions for general and customized ultrasonic phased array inspection systems.
AI scalability
Based on iFLYTEK's leading AI image recognition technology, it can provide customers with customized defect recognition functions, which can intelligently identify blade defects, welding defects, and internal defects in castings, increasing the reliability of quality inspection and reducing the labor intensity of users.
Powerful voice control
The operation of the equipment through voice commands, such as adjusting the dB value, bandwidth and other instructions, frees both hands, helps the inspectors to detect a variety of complex working conditions efficiently and conveniently, improves efficiency, and avoids the damage to the equipment itself by foreign objects such as oil stains.

Product parameters

weight	4KG
size	232mm x 190mm x 107mm
Cooling fan 2	2
Number of encoders supported	6 axes
Channel configuration	64:128PR
Number of digits	16 bits
A-scan amplitude	Up to 800%
Maximum number of A-scan points	16384
Number of focal laws	8192
Max PRF	30 kHz
Maximum transfer rate	2GB/s
Digitization frequency	200MHz
voltage	±100V
Pulse width	20ns-1250ns
bandwidth	0.4 MHz to 25 MHz
Acquisition speed	60000 A scans/sec
gain	0-80 dB
average	Up to 64
Focus	Depth, sound path, projection
3D Focal Law Calculator	Yes
Setup Wizard	Yes
3D scan of the Gan cabin plan created	In the tank
CAD import	In the tank

Fields of application

4.1 Power industry

Equipment inspection: detect internal defects (such as cracks, pores) such as transformers, generator rotors, high-voltage cables, insulators, etc.1.
Transmission facilities: check the hidden dangers of welds in iron towers, fittings and power pipelines to ensure the safe operation of the power grid234.

4.2 Aerospace

Key components: Detect internal defects such as aircraft engine blades, turbine discs, rocket fuel pipes, etc., to ensure flight safety567.
Welding quality: Evaluate the fuselage frame, spacecraft welds for non-fusion, porosity, etc.89.

4.3 Petrochemical industry

Pressure vessels and pipelines: detect cracks and corrosion in welds of storage tanks and oil pipelines to prevent leakage accidents 610.
Refining and chemical equipment: Evaluate internal damage such as reactors and heat exchangers to extend the life of equipment7.

4.4 Automotive and rail transit

Parts detection: internal defect identification of engine blocks, crankshafts, gears and other metal parts6.
Track Safety: Detect internal cracks in rails, fatigue damage to train wheels and axles
