- Product Overview

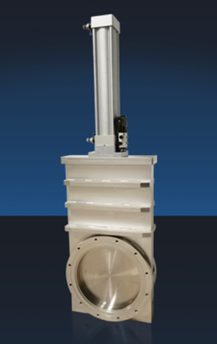

GCQ- type high-truth pneumatic plug-in valve is a newly developed ultra-thin valve, which is powered by compressed air, changes the direction of the air path through the electromagnetic reversing valve, and pushes (pulls) the valve core assembly of the cylinder piston rod to do linear motion, so as to control the opening or closing of the valve. This series of plug-in valves is suitable for the occasion where the working medium is air and non-corrosive gas, equipped with a magnetic induction switch, and an indicator light to show the opening and closing position. This series of products is designed with a shock absorption mechanism, which has the advantages of stable action, low impact vibration and low noise during the opening and closing of the valve.
- Features:
- Smooth action
- Low shock vibration
- Low noise
- Technical Indicators
| interface |
CF/ISO-F |
| Scope of application (Pa) |
10^5~10^-5 |
| Drive mode |
Pneumatic |
| Valve position indication |
Magnetic induction switch |
| Mounting direction |
arbitrarily |
| DN(mm) |
DN400 |
| Leakage rate (Pa·m³/s) |
≤6.7×10^-10 |
| Operating air pressure (MPa) |
0.5～0.6 |
| Baking temperature (°C) |
Open: 150; OFF: 120 |

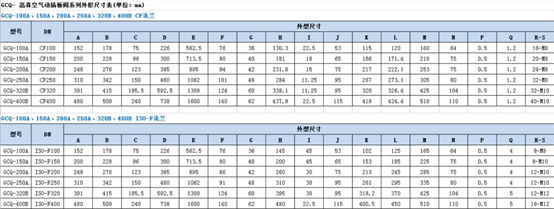

- Product dimensions
