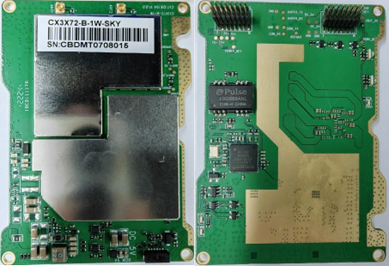

947-CX3772-B-1W
947-CX3772-B-1W

947-CX3772-B-1W

Item No.: 947
The CX3772-B-1W board supports the 1.4Ghz frequency band, adopts a high-power design, and can support software to use dual-transmitter and dual-receive schemes (MIMO and CA) to ensure the stability of the video transmission link.
INQUIRY PDF Format
Description

  1 Product introduction

 1.1Product solutions

The CX3772-B-1W board supports the 1.4Ghz frequency band, adopts a high-power design, and can support software to use dual-transmitter and dual-receive schemes (MIMO and CA) to ensure the stability of the video transmission link.

  1. Product specifications

The configuration specifications are only used as a general design reference, please refer to the actual use, and there will be no further notice if there are subsequent updates.

classify specification Detailed description:



Radio frequency metrics		 Band Frequency band：1420~1530MHz
power Transmit power: 27dBm±2
bandwidth Support 1.4/3/5/10/20MHz
Modulation Support QPSK、16QAM、64QAM
    Sensitivity (Access):
  1.4Ghz Frequency band（1437Mhz）
  10MHz -103
  5MHz      -104
sensitivity
  Sensitivity (Operational):
(BLES< =3%)
  1.4Ghz Frequency band（1437Mhz）
  10MHz  -91dBm(10Mbps)
  5MHz      -91dBm(5Mbps)
  3MHz      -97dBm(2Mbps)









performance		 Extreme transmission rate When the communication distance is short and the signal-to-noise ratio is good, the glue stick antenna gain is 2dBi, and the transmission rate is not less than 60Mbps
Movement rate Support 220KM/h
Extreme transmission distance ≤ 20km
Antenna obscures transmission performance If any antenna is occluded, the transmission effect of a single antenna in the same unobstructed environment is the same.
reliability
  1. The module is not damaged when the antenna is disconnected (i.e., open-circuit protection or anti-open-circuit design);
  2. The transceiver module is approached by wireless coupling without damaging the module (the antenna does not touch).
Delay The startup delay (until the completion of the chain construction) ≤ 35 seconds








function
Automatic frequency hopping		 Support automatic frequency hopping, support automatic frequency hopping across frequency bands:
  1. Automatically select the channel with less interference to work, and the frequency hopping switching picture is smooth;
  2. Custom transmit power configurations are supported.
Rate adaptive When the communication distance is short and the signal-to-noise ratio is good, the wireless transmission rate will be automatically increased and the image transmission quality will be improved.
Serial data transmission The serial port transmission priority is higher than the network port priority.
Networking mode Supports 1V1 and 1V4 networking
AT commands are transmitted through the network port
  1. Support WebUI transmission mode;
  2. AT instructions can be transmitted via sockets.
Upgrade features Support OTA upgrades
Logging feature ELOG 和 APLOG







hardware		 power supply 5V/5A, ripple＜50mV
connector FPH12748-D16S1014030901M
Configure the serial port UART0，TTL 3.3V
Communication serial port COM_UART，TTL 3.3V
Network port LAN, 100M (support OTA upgrade)
Antenna interface IPEX Gen 1, 1.4Ghz with two antenna ports

Light		 LED Lights:
  1. Power Lamp*1:
  2. Link building lamp*1: The central node lights up after the link is established, and the access node lights up after the link is established
  3. Network light*2: link indicator, transmission indicator;


    4) Signal Quality Light*1: Three colors to display different signal quality.
structure size 75*55.66*9.8mm
Mounting holes Compatible with S1 RF modules


  1. Hardware definition

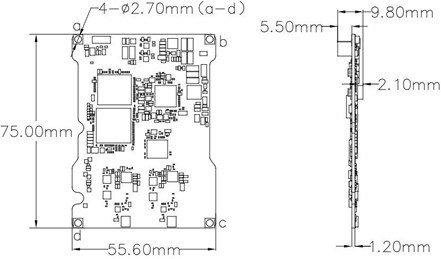

3.1 Module mechanical parameters
