Intelligent distribution room sensor complete field inspection device TM-IM-IC-PD002
1. System Introduction
The complete set of on-site inspection device system for smart distribution room sensors is divided into 5 major verification function modules: including GTHCS-100 gas and temperature and humidity verification module, MPDC-100 multi-function partial discharge verification module, WILCS-100 water immersion sensor verification module, MNCS-100 multi-function noise verification module, and MSCS-100 multi-function smoke verification module. It is mainly used for online verification of smart distribution room sensors, including SF6, O3, O₂ gas sensors, temperature and humidity sensors, UHF, high frequency, ultrasonic, transient ground voltage partial discharge sensors, positioning, non-positioning, photoelectric water immersion sensors, noise sensors, smoke sensors, etc., to realize intelligent operation and maintenance of smart distribution room sensor equipment, improve resource utilization, and reduce equipment detection and verification costs.
2. Features of GTHCS-100 gas and temperature and humidity calibration module
(1) Strong sealing, high safety level, and easy to carry;
(2) Ability to control gas concentration in real time, thereby calibrating gas leak alarm sensors with different accuracies;
(3) Fully consider human-machine friendly interaction, compact structure, simple assembly and flexible operation;
(4) It has the function of recording data by parameters, which is convenient for analyzing sensor performance by parameters;
(5) Using wireless LORA transmission technology to upload verification results in real time;
(6) Fully consider the structural design and material selection, and have strong anti-electromagnetic interference capability; (7) Highly integrated, miniaturized, and low power consumption
3. GTHCS-100 Gas and Temperature and Humidity Calibration Module Parameters
| name |
Parameters |
| Detection principle |
Infrared/Electrochemical/Digital |
| Supply voltage |
12V±5% |
| Response time |
<20S |
| Sampling accuracy |
＜±2%F.S |
| Repeatability |
＜±1%F.S |
| Ambient temperature |
-20～65℃ |
| Relative humidity |
-20～70% |
| Working power supply |
Rechargeable lithium battery |
| Power consumption |
<1W |
| Wireless communication distance |
<1000m |
4. Features of MPDC-100 Multi-function Partial Discharge Calibration Module
(1) The programmable calibration pulse generation circuit module with wide dynamic range and stable waveform is completely aligned with the laboratory calibration pulse signal source and can be used to detect partial discharge information of switch cabinets;
(2) Design parameters of pulse waveform and dynamic range taking into account the four partial discharge coupling sensing methods;
(3) High efficiency, high integration, strong stability, good adaptability and easy operation;
(4) Programmable calibration pulse generation circuit module with wide dynamic range and stable waveform;
(5) Efficient and convenient information services, with status assessment reports accurately pushed to the host terminal, eliminating the technical barriers for users.
5. MPDC-100 Multi-function Partial Discharge Calibration Module Parameters
| name |
Parameters |
| Pulse amplitude |
0~200V adjustable |
| Rise time |
（20%~80%）＜500ps |
| Repetition frequency |
50~200Hz adjustable |
| Output Impedance |
50Ω |
| UHF multifunctional coupling tooling |
| Frequency band |
DC-2GHz |
| Effective height |
＞10mm |
| Radiation range |
Omnidirectional/directional |
| High frequency portable coupling tool |
| Frequency band |
100kHz-100MHz |
| Matching impedance |
50Ω |
| characteristic |
Highly portable and easy to operate |
| Ultrasonic coupling tooling |
| Frequency band |
20kHz-200kHz |
| Sensitivity |
＞65dB |
| Matching impedance |
High resistance |
| characteristic |
Wide radiation range |
| Transient ground voltage coupling tool |
| Frequency band |
1MHz-100MHz |
| Radius range |
0-60dBmV |
| characteristic |
Anti-electromagnetic interference |
6. Features of WILCS-100 Water Leakage Sensor Calibration Module
(1) Software adjustable detection sensitivity;
(2) Fully consider human-machine friendly interaction, compact structure, simple assembly and flexible operation
(3) It has the function of recording data by parameters, which is convenient for analyzing sensor performance by parameters
(4) Using wireless LORA transmission technology to upload verification results in real time;
(5) Fully consider the structural design and material selection, and have strong anti-electromagnetic interference ability;
(6) Highly integrated, miniaturized, and low power consumption;
(7) Short response time and fast verification speed.
7. WILCS-100 Water Leakage Sensor Calibration Module Parameters
| name |
Parameters |
| Positioning type |
| Supply voltage |
12V |
| Reaction time |
≤8s |
| Positioning accuracy |
＜0.1m |
| Ambient humidity |
5%-95% non-condensing |
| Ambient temperature |
-10℃-50℃ |
| Non-positioning type |
| Supply voltage |
DC 9~30V |
| Reaction time |
≤2s |
| Ambient humidity |
5%-95% non-condensing |
| Ambient temperature |
-10℃-50℃ |
| Photoelectric type |
| Supply voltage |
DC 9-30V； |
| Reaction time |
≤2s； |
| Ambient humidity |
5%-95% non-condensing |
| Ambient temperature |
-10℃-50℃。 |
| Electrical parameters |
| Working power supply |
Rechargeable lithium battery |
| Power consumption |
<1W |
| Wireless communication distance |
<1000m |

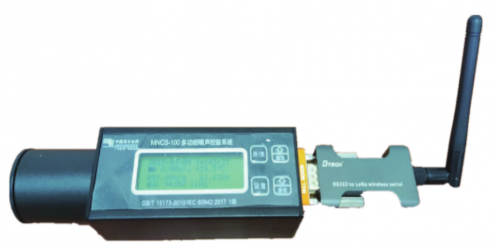

MNCS-100 Multi-function Noise Calibration Module Features
1). The module can also be used as a meteorological parameter measurement recorder, which can record ambient temperature, relative humidity, and atmospheric pressure in real time.
2). Frequency weighting is added to the sound level meter, so that the decibel value measured by the sound level meter is correlated with the human auditory system. The sound pressure level is the sound pressure level measured after the frequency weighting network.
3). High-performance processor, which can emit stable noise signals in strong electromagnetic interference environment;
4). It has good flexibility and can realize sound calibration of multiple frequency points and multiple sound pressure levels, and has frequency switching and sound pressure level switching functions;
5). Highly integrated, miniaturized, and low power consumption;
6). Efficient and convenient information services, the status assessment report is accurately uploaded to the host computer, eliminating the technical threshold for users;
| name |
Parameters |
| Output frequency |
1000Hz、500Hz、250Hz、125Hz±1% |
| Output amplitude |
94dB |
| Positioning accuracy |
＜0.1m |
| Ambient humidity |
10%-90% non-condensing |
| Ambient temperature |
-10℃-50℃ |
| Stabilization time |
5s |
| Short-term stability |
Better than 0.1dB |
| Communication |
Wireless LoRa communication |
| Electrical parameters |
| Working power supply |
Rechargeable lithium battery |
| Power consumption |
<0.5W |
| Wireless communication distance |
<1000m |
2. eatures of MSCS-100 multi-function smoke calibration module:
1. The smoke emitted by the special mist fragrance liquid and electronic atomization technology has no open flame, no ash, is safe and has no secondary pollution to the probe;
2. The smoke can be freely diffused to the tail end of the smoke generating device and escape, which can effectively prevent some substances in the smoke from polluting the smoke generator;
3. Sufficient smoke raw materials, simple preparation process, good smoke effect and excellent corrosion resistance;
4. Compact structure, exquisite appearance, easy to carry, simple assembly, flexible operation, light gun body, high cost performance;
It uses high-efficiency lithium battery charging and discharging, which increases the service life. It can be used for maintenance, testing, debugging and acceptance of smoke detectors. It is the best auxiliary tool for fire detection, fire engineering and units using fire alarm systems.
| name |
Parameters |
| Detection principle |
Electronic atomization technology |
| Supply voltage |
7.4V±5% |
| Response time |
＜5S |
| Smoke test |
450-800 times |
| Heating test |
>400 times |
| Ambient humidity |
10%-90% non-condensing |
| Ambient temperature |
-10℃-50℃ |
| Electrical parameters |
| Working power supply |
Rechargeable lithium battery |
| Power consumption |
<0.5W |
