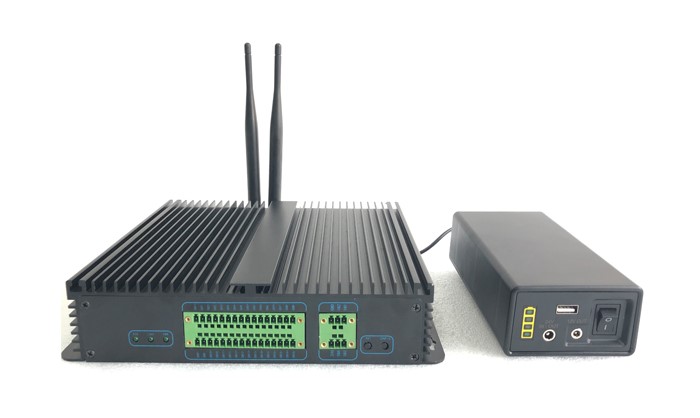

771-A 16-channel 24-bit 256kHZ vibration signal collector

771-A 16-channel 24-bit 256kHZ vibration signal collector

1. Product overview
Data collector is an intelligent terminal running Linux operating system. With the support of Ethernet network, a large-scale distributed intelligent data collection system can be quickly built. The collector terminal is small, low power consumption, easy to integrate, can be added waterproof shell, reaching the IP67 protection level. Using the Visual Studio integrated development environment, with a large number of open source and third-party resources, users can complete the development of collector programs in a very short time, such as continuous signal acquisition, data processing algorithm, network communication, etc., with high development efficiency and low difficulty. The collector uploads the calculation results to the server, and the amount of data is reduced compared with the original collected data, which occupies lower network resources, reduces the hardware configuration requirements of the server, and greatly reduces the hardware cost of the server. Network communication transmission reliability, good platform adaptability, simple development and operation, and rich development resources. Users can back up data locally, and ensure the integrity of data in case of network failure or server power failure. Applicable to: thermal power, wind power, chemical industry, shipping, aviation
2. technical specifications
input characteristics:

number of channels	8 / 12 / 16 simulated input channels
ADC resolution ratio	24bit
ADC type	Sigma-Delta
Input signal dynamic range	110dB
Sampling mode	Synchronous sampling
Input balance mode	Pseudo-differential input
Sampling the clock stability	±50ppm（-40°C~70°C）
Sampling clock range	64 Hz ~ 256 k HZ (step of 0.1Hz)
Enter the coupling mode	AC / DC (switch through software selection)
input voltage range	±10V
ICP supply current	2.7 mA / 4 mA (software selecswitch)
ICP service voltage	24V
Input overpressure protection	±28V
input offset error	0.5mV(25°C±5°C)，7mV(-40°C~70°C)
Input gain error	0.1％(25°C±5°C)，0.5％(-40°C~70°C)
Interchannel crosstalk	<100db
Harmonic distortion (THD)	<-98dB
input impedence	820kΩ
Input filter-3dB bandwidth	45kHz

peripheral interface:

External trigger source	Trigger type: rising edge / falling edge pre-acquisition trigger: support compatible TTL digital trigger mode (alternative): 1. -24V~ + 24V programmable voltage trigger programmable voltage trigger voltage 2. Photoelectric isolation trigger interface, TTL level number
External clock source	External reference clock: 10 MHz The external GPS module can be connected for synchronous acquisition/timing
memory interface	TF card interface: maximum support of 32GB USB interface: external U disk storage
Digital IO interface	The 8-way TTL digital IO interface
Speed interface	Number of channels: 1 (expanded to 2) supports maximum 4 MHz speed frequency input speed accuracy: ± 30ppm provides 12V 50mA power supply output
communication interface	RS232 interface: 1 RS485 interface: 1 CAN bus interface: 1 (optional) Ethernet communication interface: 1 WIFI interface: 2.4G/5.8G high-speed dual-frequency, real-time transmission and data collection

Controller hardware and software resources:

CPU	ARM (Cortex-A9 dual-core 667 MHz) + FPGA
RAM	512MB DDR3
Onboard FLASH	4GB
Operating system and platform software	Relinux(RT Linux),. Above the NET framework 4.0
Software development language and IDE	Visual Studio C#
Software development support	Sharp vision measurement and control software, C #, Python, labVIEW and MATLAB platforms
remote debugging	Support for online and remote debugging
The FPGA acceleration algorithm	FPGA acceleration of commonly used signal processing algorithms
Commonly used algorithm support	Spectrum analysis, impact demodulation, envelope demodulation, synchronous acquisition, digital filter and other interfaces
Maximum number of sampling points at a time	1024000
Maximum number of spectral lines	1024000
Secondary development support	Built-in construction. The net platform and real-time RT operating system, users can customize the card acquisition process and algorithm development

Power supply and service environment:

External power supply	9~36V (15W) / optional battery power supply
Use ambient temperature	-40°C~70°C (limit up to 90℃)
Use ambient humidity	10%~95% (no condensation)

Size and weight:

size	200mm (L) x222mm (W) x50mm (GH)
weight	1.5kg
