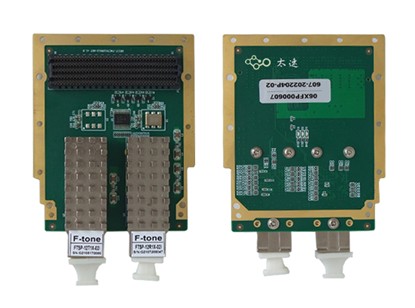

| 1. Board Overview This card is an FPGA mezzanine card (FMC) module that can provide up to 2 CXP module interfaces and 12 receive and 12 transmit fiber channels. Each channel supports 10Gbps and can form X4, X8 or X12 modes through the Aurora protocol. The baseboard gives priority to the Taisu Technology No. 636 baseboard (XCKU060 FPGA), X8 mode, and Xilinx's general development board can be used. The board has two GTX reference clocks. By replacing the chip, it can support various optical fiber protocols and various rate requirements.   |
