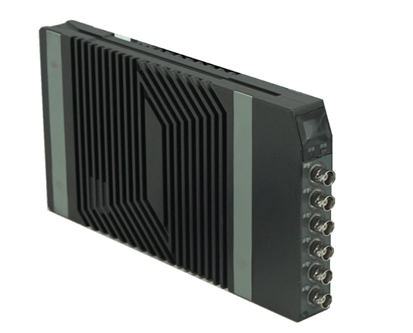

Engine Vibration Based Signal Tester

INQUIRY PDF Format

Description

LXI vibration signal acquisition hardware and abundant vibration signal analysis software;
It can realize the synchronous acquisition and analysis of multi-channel high-precision vibration signals;
It can work in a variety of working modes such as modular independent work, distributed networking work and integrated in chassis work;
Multiple collectors can be interconnected.

Distributed network collection can be formed;
The acquisition interface is replaceable and supports multiple types of connectors (BNC, SMA, TNC, etc.);
Can be powered by Ethernet POE ;
It has IEEE1588 high-precision clock synchronization function;
160dB high dynamic range acquisition;
Support signal acquisition of IPE/ICP/CCLD, TEDS sensors.

project	index
Number of channels	6
Number of sample bits	2×24bit
Highest sampling rate	131kS/s
Maximum analysis bandwidth	51.2kHz
Measure the voltage range	± 10V (extendable range±31.6V).
dynamic range	160dB
Absolute amplitude accuracy (1.024kHz, 1V input).	±0.05 dB
Total frequency response (reference frequency 1.024kHz).	±0.1dB
size	133mm×32mm×248mm
weight	≤1kg

Oscilloscope function: real-time storage of collected data, real-time display of acquired waveform, online spectrum analysis function, random vibration analysis function;
Data operation and analysis: find the mean, root mean square, maximum, median, variance, standard deviation, waveform formula operation, etc.;
Window functions: In-line and post-processing include Rectangular Windows, Bartlett, Hanning, Hanmming, Blackman, Triangle Windows, Kaiser Wait;
Spectrum analysis: FFT analysis, ASP self-power spectrum, CPS mutual power spectrum, PSD power spectrum density analysis;
Octave analysis: 1/n octave analysis (including 1/1, 1/3, 1/6, 1/12, 1/24) can be performed simultaneously octave);
Trigger function: monitoring channel signal trigger, manual trigger, time trigger and other modes;
Data file export formats: MATLAB, TXT, EXCEL, etc.
