270-VC709E FPGA XC7VX690T PCIeX8 interface card based on FMC interface

Name: 270-VC709E FPGA XC7VX690T PCIeX8 interface card based on FMC interface
Brand: Orihard
SKU: 270
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 270

INQUIRY PDF Format

Description

1. Overview of the board card

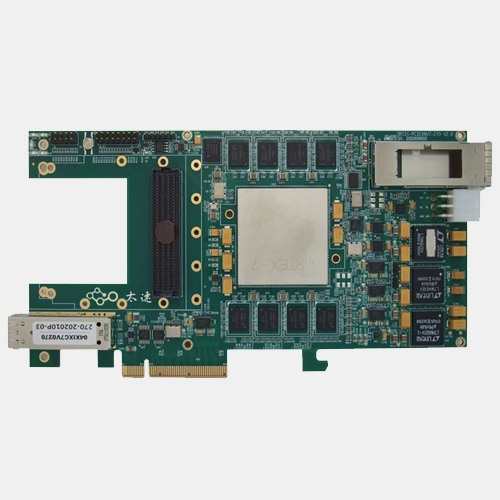

This board card is based on Xilinx's FPGA XC7VX690T-FFG1761 chip, supporting PCIeX8, two groups of 64BIT DDR3 capacity 8GByte, HPC FMC connector, the board card supports various FMC sub-card extensions. The software supports Windows and Linux operating systems.

2.Function and technical indicators:

The board function	Parameters of the content
The main processor	XC7V690T-2FFG1761I
The board standard	PCI EXPRESS CARD SPECIFICATION, REV. 1.1
Electrical specification	PCIe including 2.0、3.0 version
The on-board cache	FMC ANSI/VITA 57.1 – 2008 ，ASP-134486-01 HPC中LA，HA，HB full interface and DP0~DP7 eight channel high speed interface
Loading Flash	Two sets of DDR3 each has a capacity of 2GB and 64bit @800mhz
High speed interface	BPI Flash 128Mbyte, PC28F00AG18FE
Low speed interface	One channel QSFP+ @4X10Gbps， one channel SFP+ @10Gbps PCIe X8
Size	Twelve channel IO 1.8V IO
weight
Power supply	（within heat sink）
Power consumption	+12V@5A
Working temperature	50W
The board function	Industrial -20℃ to +70℃

3.Interface test software

Function	Parameters of the content
The main processor	XC7V690T-2FFG1761I
Version of the software	Vivado 2017.4
Programming language	Verilog
Board card interface test program	DDR test、optical fiber test、PCIe IO mode test
Board card interface application program	PCIe V3.0 XDMA test FPGA program， Windows 7，Linux diver
Function	Provide the corresponding test interface program according to the sub-card model

4.Application filed

Software radio processing platform graphics image hardware accelerator Net FPGA
