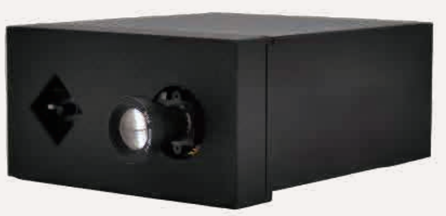

- Product Overview:
The MXD depth camera obtains depth information by measuring the round-trip time of light pulses, and can achieve high-precision three-dimensional environmental perception according to the 3D point cloud image generated by the depth color display combined with the hollow completion algorithm, and has the characteristics of high frame rate, no scanning mechanism, and independent of external light. It has the advantages of real-time, low cost, and strong anti-interference, and is widely used in industrial automation, autonomous driving and other fields.
- Product features:
| Bit wide |
12bit |
| Photosensitive area |
6.4mm×4.8mm |
| Pixel size |
20μmx20μm |
| Lens Mount |
M12 |
| Input voltage |
DC 12V-24V |
| power consumption |
25W (typical application) |
| Enter the resolution |
320×240 |
| Minimum imaging height |
0.1Lux |
| Enter the frame rate |
Continuous frame area array imaging at 35fps |
| Precision |
The maximum detection accuracy is 2mm |
| Distance |
The farthest detection distance is 100m |
| Peak quantum efficiency |
80％@850nm |
| Image format |
RAM (Intensity Information, Distance Information) |
| Product grade |
Industrial grade |
| Interface |
Cameralink（默认），Gige网口，GigeUSB接口 |
- Application of the product

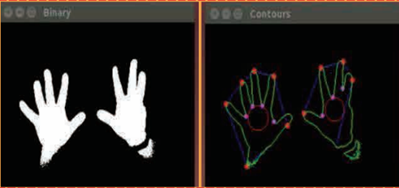

Gesture recognition

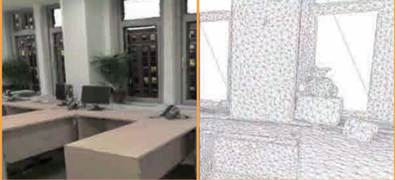

3D scanning

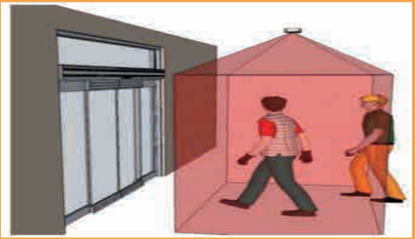

Security monitoring (face stereo recognition, anti-tailgating)

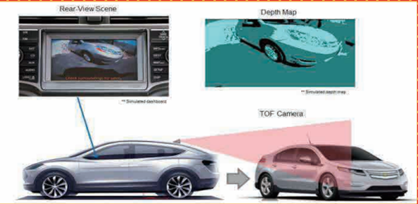

Autonomous driving
VR human-computer interaction

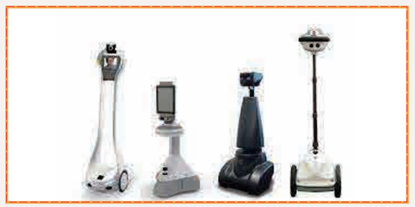

Robot obstacle avoidance and automatic navigation
- Product physical properties

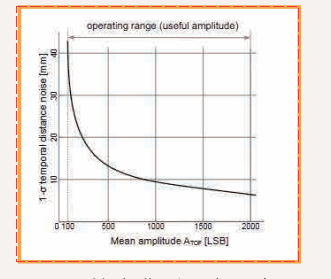

No typical distance noise from ambient light
Sensitivity coefficient

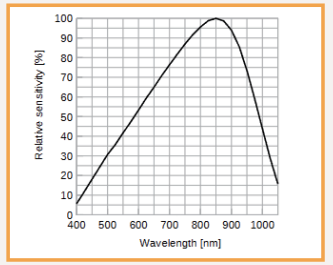

Relative sensitivity response curve
MXD depth camera distance imaging

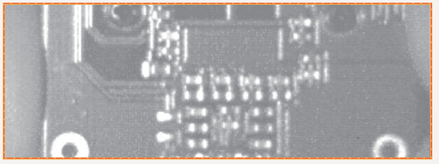

MXD depth camera grayscale imaging
