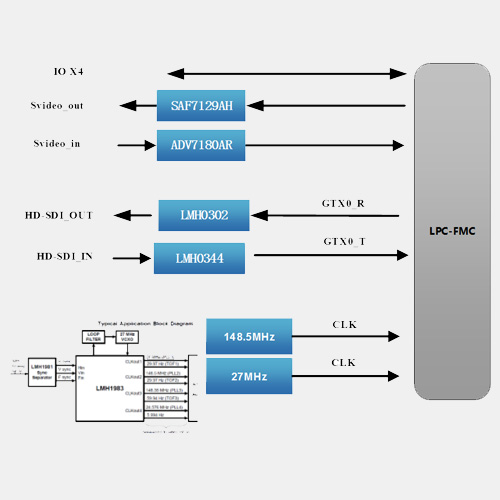

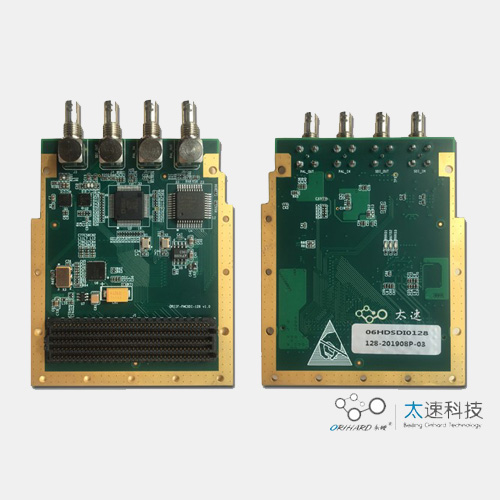

Function |
Parameters |
Contents |
HD-SDI input |
Chip type |
FPGA GTX, HD-SDI IP |
Channel amount |
One channel |
Rate |
1.485Gb/s、2.97Gb/s |
Video |
720P,1080P |
Transfer impedance |
75Ω |
HD-SDI output |
Chip type |
FPGA GTX, HD-SDI IP |
Channel amount |
One channel |
Rate |
1.485Gb/s、2.97Gb/s |
Video |
720P,1080P |
Transfer impedance |
75Ω |
Composite video input |
Chip type |
ADV7180 |
Channel amount |
One channel |
Rate |
PAL |
Video |
75Ω |
Composite video output |
Chip type |
SAF7129 |
Channel amount |
One channel |
Rate |
PAL |
Video |
75Ω |
Standard |
FMC ANSI/VITA 57.1 – 2008 |
Size |
69X76.5mm;The mounting hole size is2.7mm |
Front board |
Four channel HDBNC |
weight |
|
Power supply |
+12V@0.5A |
Power consumption |
2W |
Working temperature |
Industrial -20℃ to +70℃ |
Support mother board |
Xilinx board |
V6、V7、KU、VU、 ZYNQ、ZU development board |
Orihard board |
136、270、367、288、330、274、3、9 |
|
|
|
|
